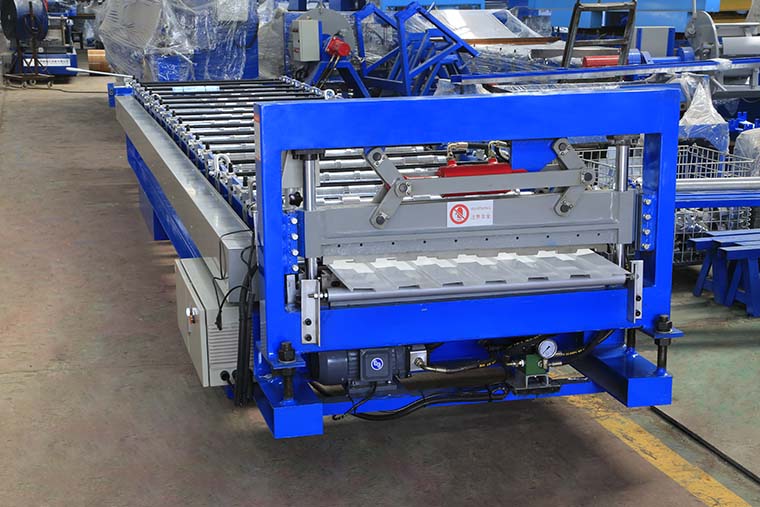

Wall Decorative Panel Roll Forming Machine

1.Main features of wall decorative panel(advertising panel) machine roll forming machine

 The advantages of roof panel machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material ,no waste.

    3.Easy operation, low maintenance cost

    4.Beautiful appearance

    5.Accuracy profile

2.Detail Wall decorative panel forming machine

Machine Parts

1) Wall decorative panel(advertising panel) machine pre-cutter

        With feeding material guide.

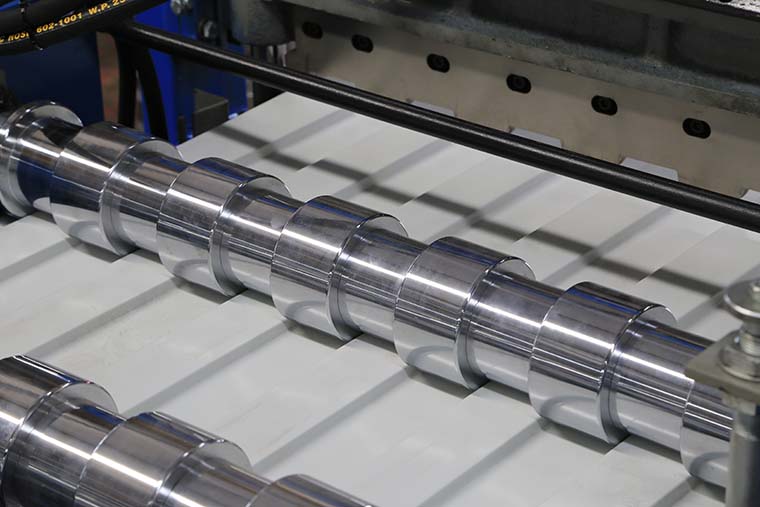

2) Wall decorative panel(advertising panel) machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body frame made from 350# H type steel by welding

3) Wall decorative panel(advertising panel) machine post cutter

         Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
         hydraulic motor:3.7KW, Hydraulic pressure range: 0-16Mpa

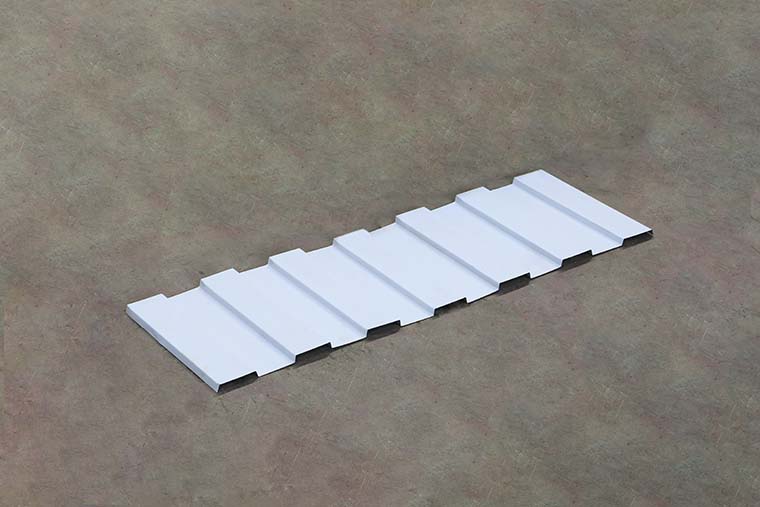

4) Wall decorative panel(advertising panel) machine product show

 5) Wall decorative panel(advertising panel) machine PLC control system

        PLC Control System (Touch screenbrand:German Siemens Electric/Japan Mitsubishi,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

        Combined with: PLC, Inverter, TouchScreen, Encoder, etc

6) Wall decorative panel(advertising panel) machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton
