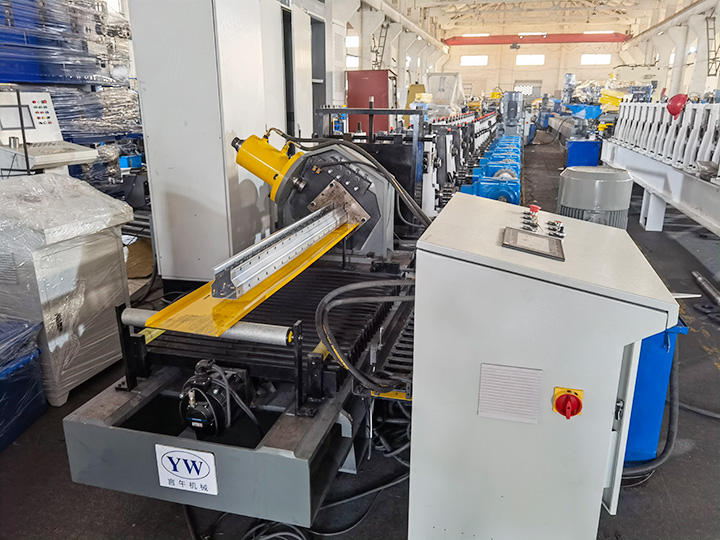

1.Description of Warehouse Racks Roll Forming Machine

This machine takes galvanized steel or cold rolled steel as the raw materials,  through the a series steps to form it into a shelving profile with specific shape and size. The forming steps devices include decoiler, Feeding and Leveling Device, Hydraulic Punching device,main forming mill, hydraulic post-cutter. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

2.Detail Warehouse Racks Roll Forming Machine Flow Chart

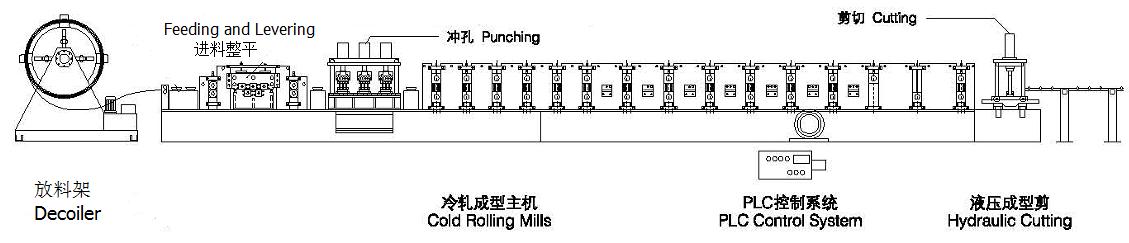

Decoiler →Feeing and Leveling Device→Hydrualic Punching device →Main forming machine → Hydraulic post-cutting→Exit rack.

3.Main Machine

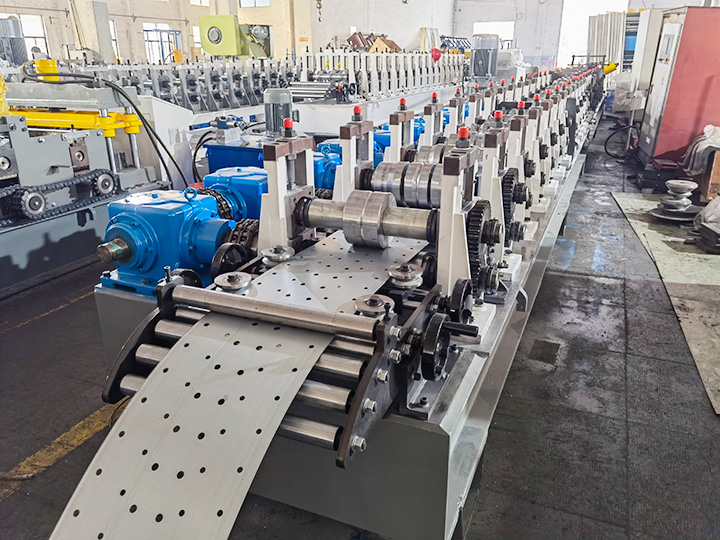

With feeding Guide,Body frame made from H400 type steel by welding Side wall thickness: Q235 t18mm ;Tie rod:ф22 Galvanized Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated;with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust);Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=80mm,precision machined Gear & chain drive about 22-step to form Main Motor(Polaroid brand)=15KW ,Frequency speed control

4.PLC control system

        PLC Control System (Touch screenbrand:German Siemens Electric/Japan Mitsubishi,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

        Combined with: PLC, Inverter, TouchScreen, Encoder, etc

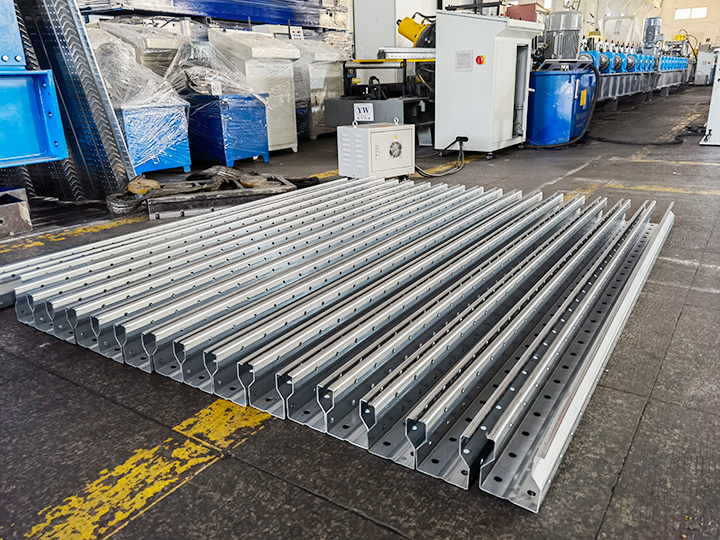

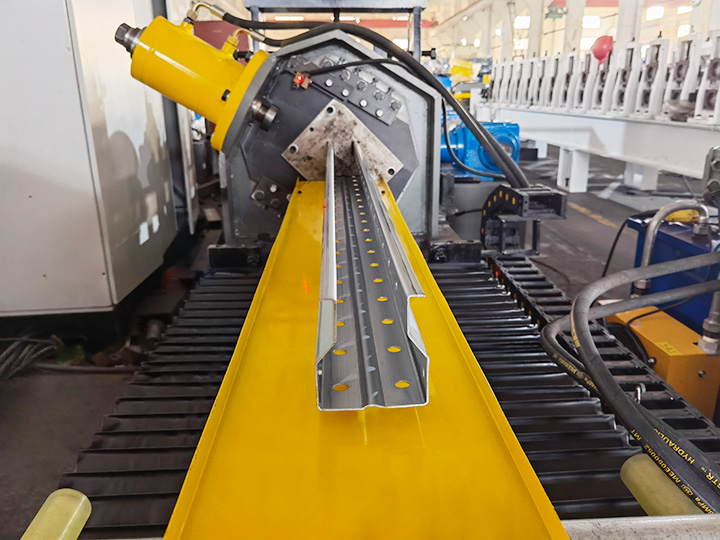

5.Warehouse Racks Roll Forming Machine Prodcuts Warehouse Uprights
