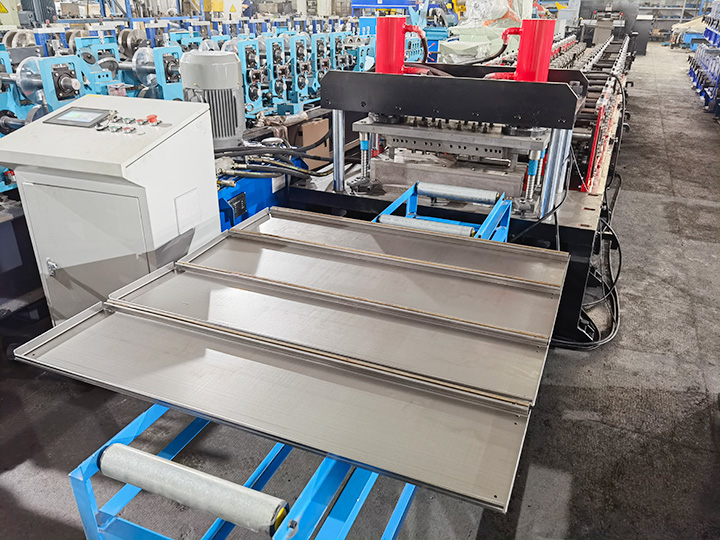

1.Description of Storage Rack Laminated Deck Forming Machine

Material Material Thickness: 0.8-1.4mm

Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)

With yield strength :G340-550Mpa

2.Detail Work Follow

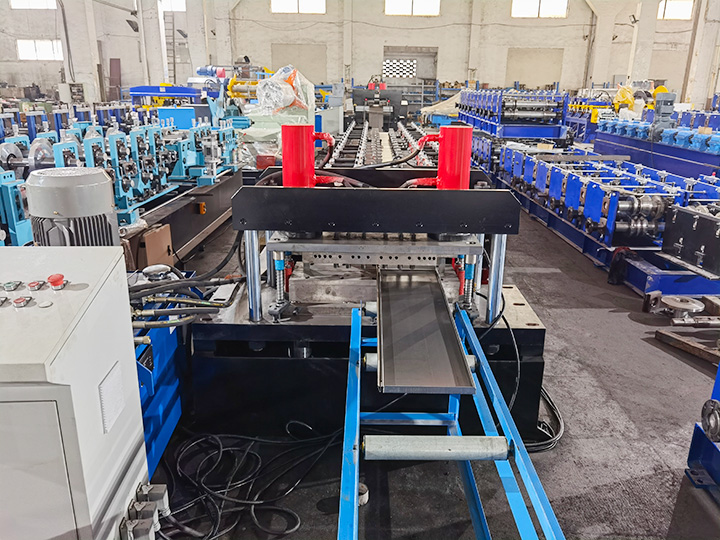

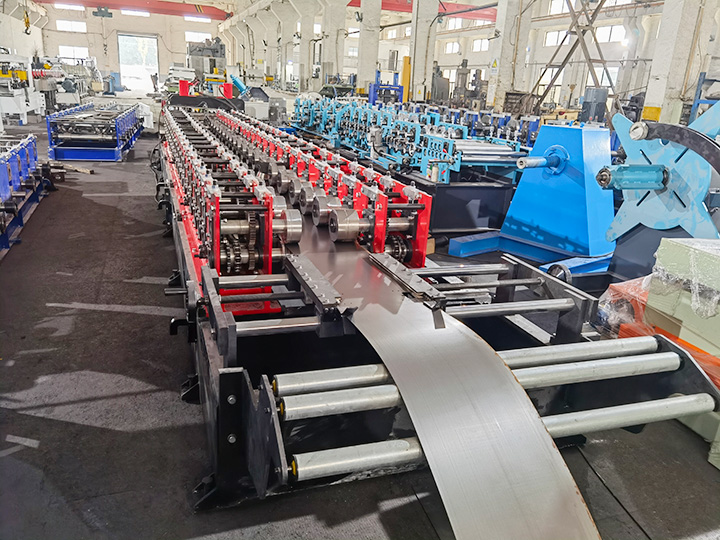

Decoiler→Servo Feeding & Punching Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Bending & Cutting Device→Exit Rack

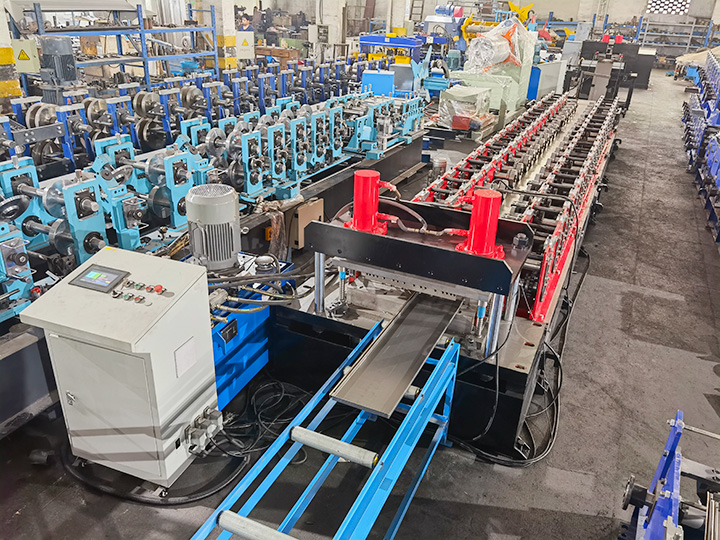

3.Main Machine

Machine Components

1) 5 T Hydraulic Decoiler Hydraulic control steel coil inner bore shrinkage and stop Max. feeding width:600mm Coil ID Range:508±30mm,Outside Diameter:1600mm Max capacity:5 ton,Oil pump motor:2.2KW

4.PLC control system

        PLC Control System (Touch screenbrand:German Siemens Electric/Japan Mitsubishi,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

        Combined with: PLC, Inverter, TouchScreen, Encoder, etc

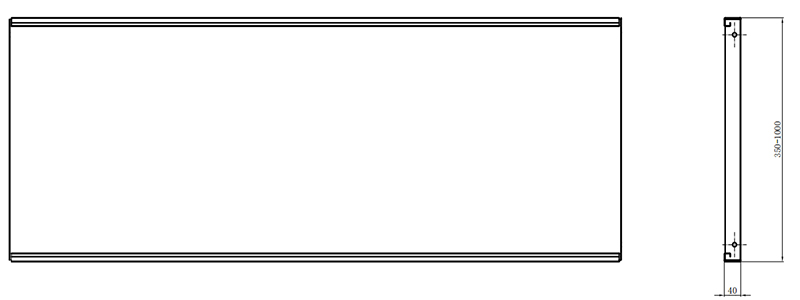

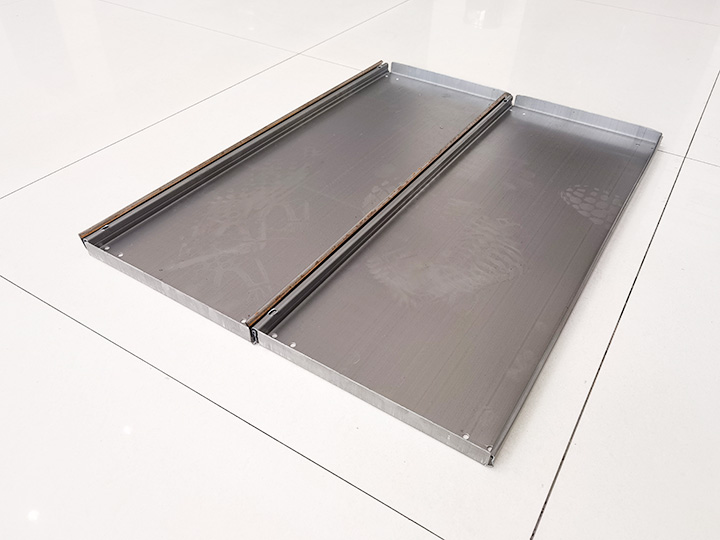

5.Storage Rack Laminated Deck Forming Machine Shelf Deck Panel
