Solar Sections Roll Forming Machine

1.Main features of Solar Sections Roll Forming Machine

 The advantages of roof panel machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material ,no waste.

    3.Easy operation, low maintenance cost

    4.Beautiful appearance

    5.Accuracy profile

 2.Detail Solar Sections Roll Forming Machine

Machine Parts

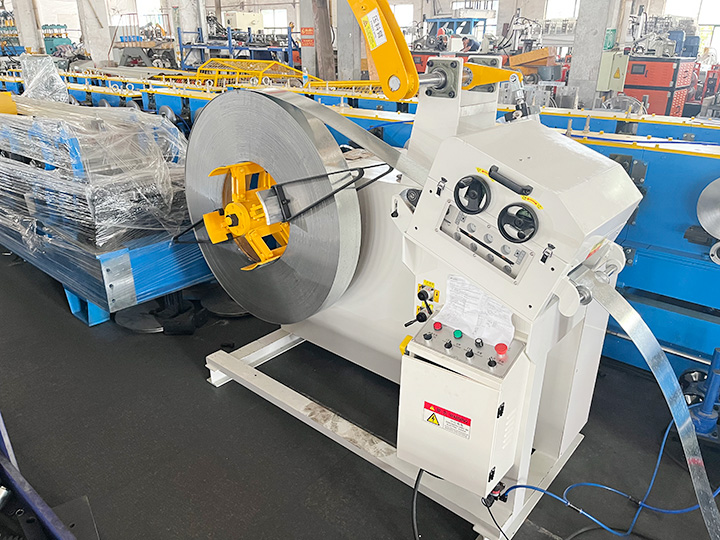

1) 5 Ton Hydraulic Decoiler: one set machine

        Hydraulic control steel coil inner bore shrinkage and stop

        Max. feeding width:600mm

        Coil ID Range:508±30mm,Outside Diameter:1500mm

        Max capacity:5ton, motor:3KW, frequency speed control

        Oil pump motor:3KW

        Add automatic feeding power and self-stop device

        With Hydraulic Pressure Arm Device

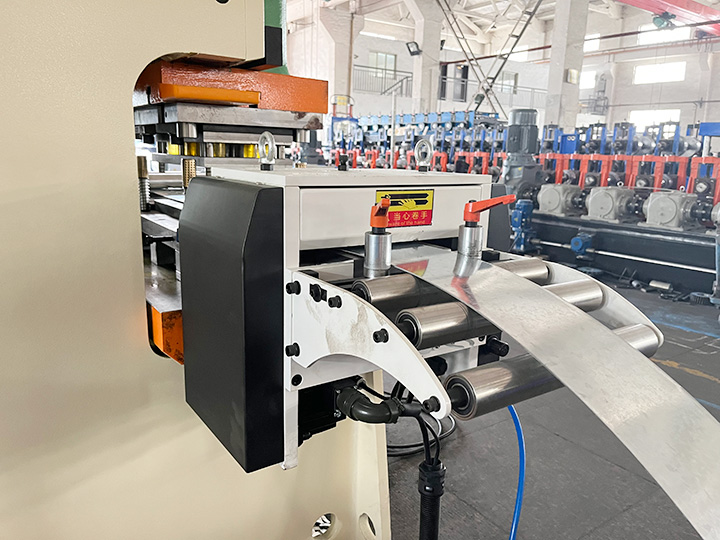

2)  Leveling Device

        Up Three down Four totally seven roller leveling device

        With feeding material guide, body frame made from H450 type steel by welding Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=φ90mm,precision machined Motor power:3KW

        Body frame made from 350# H type steel by welding

3)  Servo Drive & Punching Machine

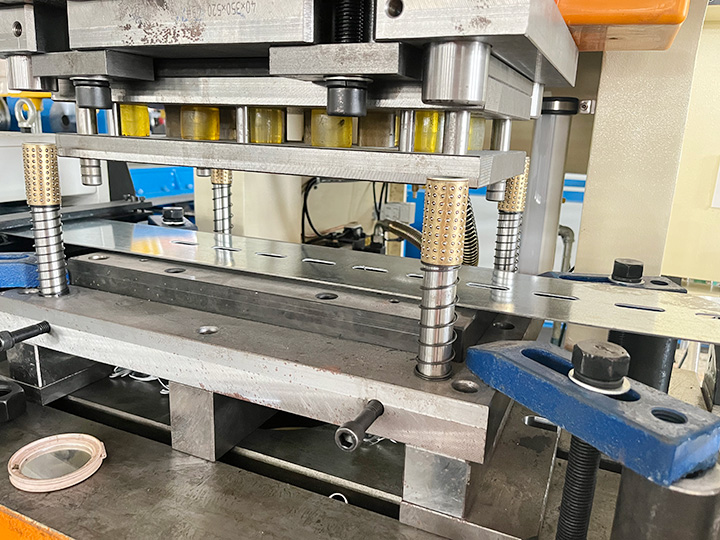

       63 Tons HIGH SPEED punching machine before roll forming, equip with one set of punching model.Punching machine four sides with safety cover and one side with open the door.By PLC system control.

        Material sending by the Servo motor for punching more accuracy, servo motor power 3KW

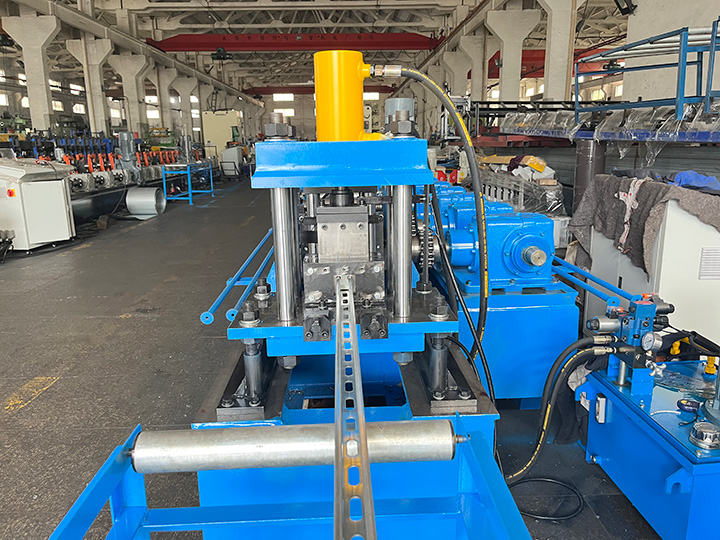

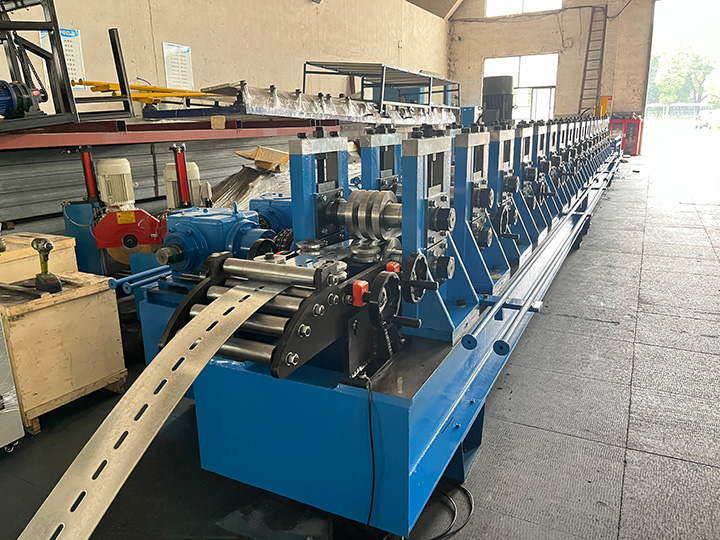

4) Main Machine

     With feeding Guide,Body frame made from H400 type steel by welding Side wall thickness: Q235 t18mm ;Tie rod:ф22 Galvanized Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated;with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust);Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=80mm,precision machined Gear & chain drive about 22-step to form Main Motor(Polaroid brand)=15KW ,Frequency speed control

 5) PLC control system

        PLC Control System (Touch screenbrand:German Siemens Electric/Japan Mitsubishi,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

        Combined with: PLC, Inverter, TouchScreen, Encoder, etc

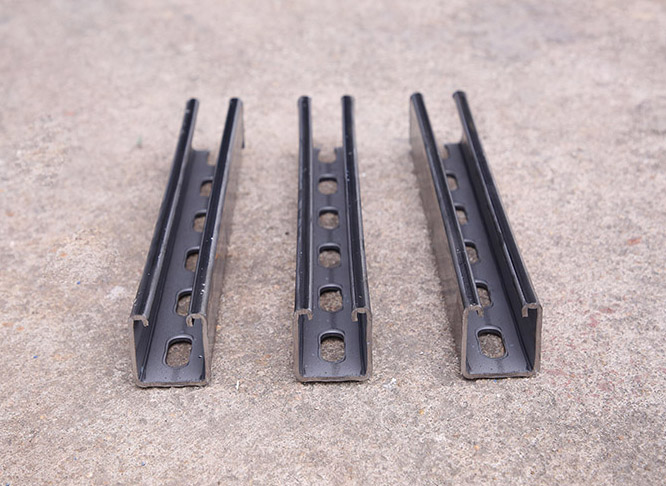

6) Solar Sections Roll Forming Machine Product
