1.Description of Shelf Box Beam Forming Machine

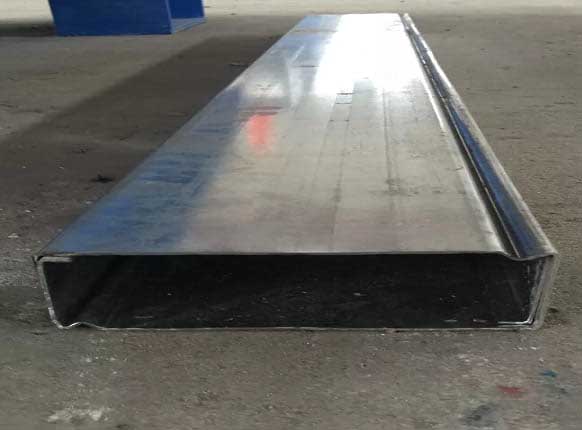

Shelf beam is a roll formed beam manufactured from two “C” shaped sections of high tensile, zinc coated steel, mechanically locked together c profile forming machine for Box Beam Forming Machine, First, make c profile from forming machines, Second, manually put two profile c, face to face together, Third, insert these c profiles into small forming machine , which only 4 roll stations,make c profile purlins hold together, like box beams. while some box beams made by welding two profile c purlin together. for example, laser welding boxspan steel beams machine

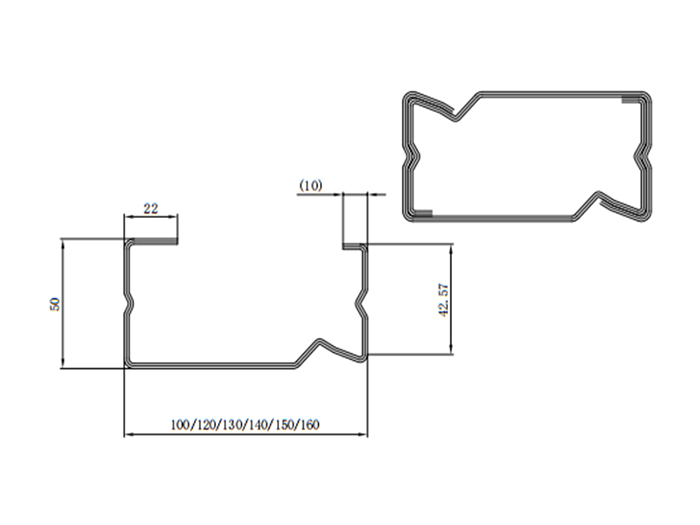

2.Detail Shelf Box Beam Forming Machine Profile

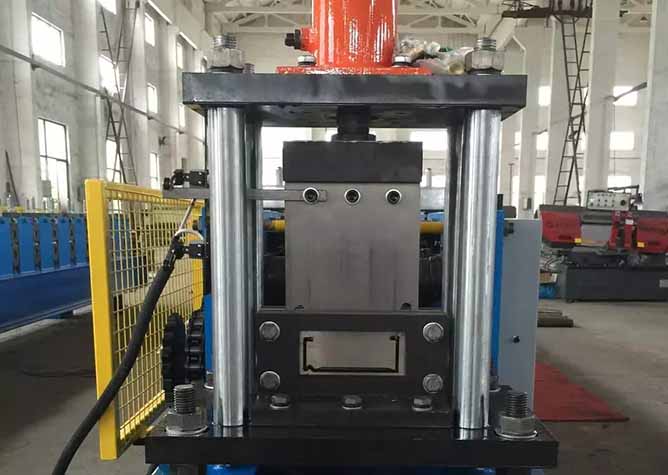

Decoiler →Feeing and Leveling Device→Hydrualic Punching device →Main forming machine → Hydraulic post-cutting→Exit rack.

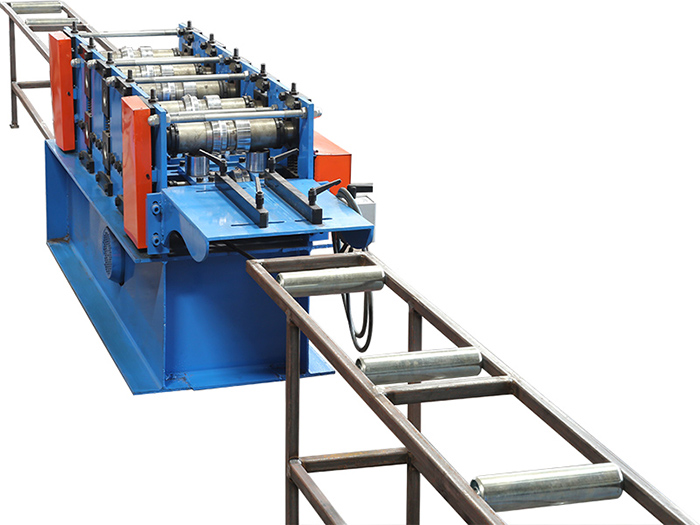

3.Main Machine

With feeding Guide,Body frame made from H400 type steel by welding Side wall thickness: Q235 t18mm ;Tie rod:ф22 Galvanized Rollers manufactured from Bearing steel GCr15(=EN31 steel), precision machined,hard Chrome Coated;with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust);Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=80mm,precision machined Gear & chain drive about 22-step to form Main Motor(Polaroid brand)=15KW ,Frequency speed control

4.PLC control system

        PLC Control System (Touch screenbrand:German Siemens Electric/Japan Mitsubishi,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

        Combined with: PLC, Inverter, TouchScreen, Encoder, etc

5.Shelf Box Beam Forming Machine Prodcuts Warehouse Uprights
