Description

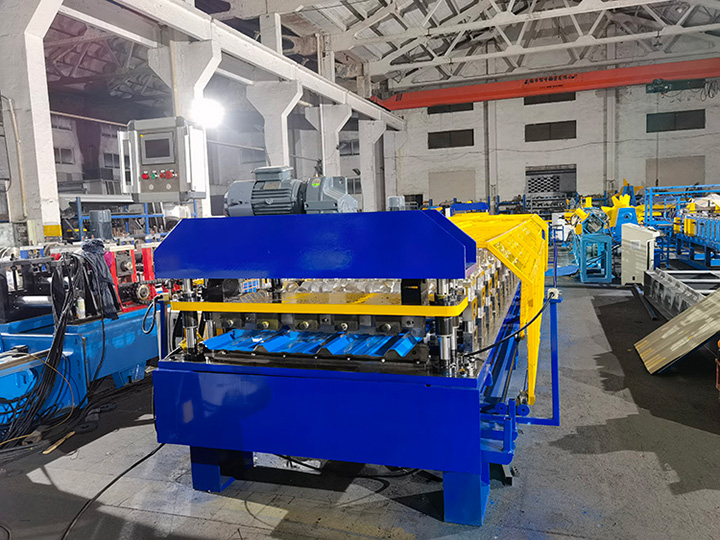

Roofing Sheet Forming Machine is a roof/wall panel roll forming machine for continuous rolling and cold-forming on steel sheet. The roof/wall panel roll forming machine adopts coiling steel sheet as the raw material and coil car to feed the coil sheets to the decoiler.

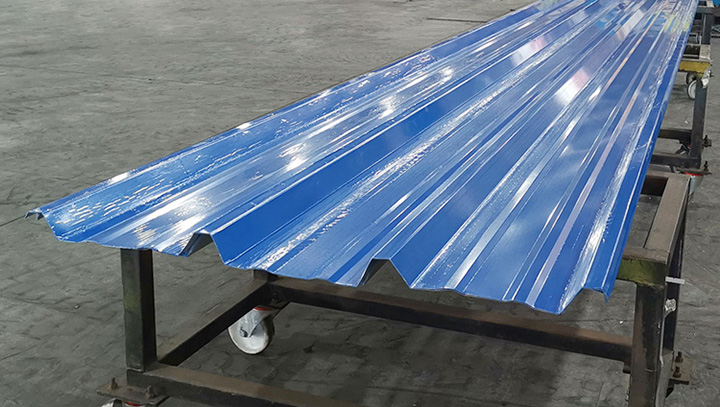

Through decoiling, continuous rolling and cold-forming, the coil sheets are automatically cut to the size and specification required. The stacking of finished panel can be also done automatically. It adopts PLC control, AC frequency and speed adjusting technology to realize continuous work automatically. The roll former is energy-saving and high-effective to be used for trapezoidal or corrugated steel.

Application

Roofing Sheet Forming Machine is used to make metal roof system for steel-structured buildings in constructional engineering.
Process
Decoiling→cold rolling→single punching and cutting

Advantages

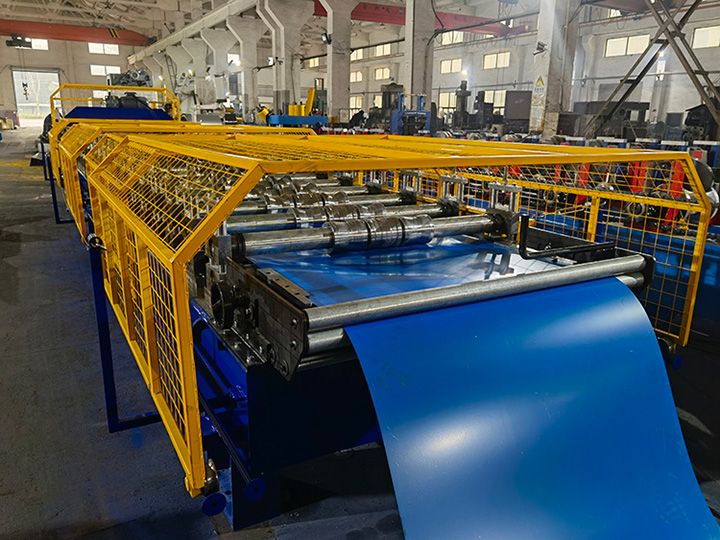

1.The roller shaft is supported by guiding column.
2. Double-chain transmission
3. Electric motor driven, with dynamos in every section
4. PLC Brand: Mitsubishi & Siemens
5. Producing speed can reach to 8-9m/min

Lead Time & Delivery
60 days to produce after receiving the down payment.
Payment
30% TT for down payment, the rest of the contract value should be paid by TT before shipment.
Parameters

Components
