Description

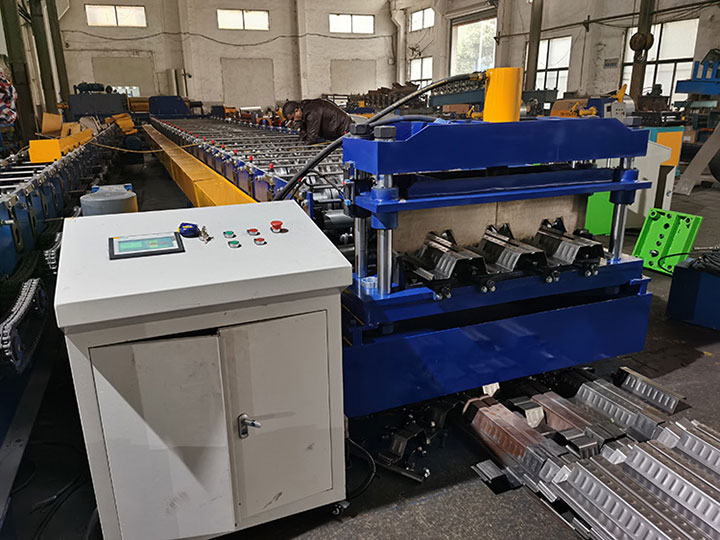

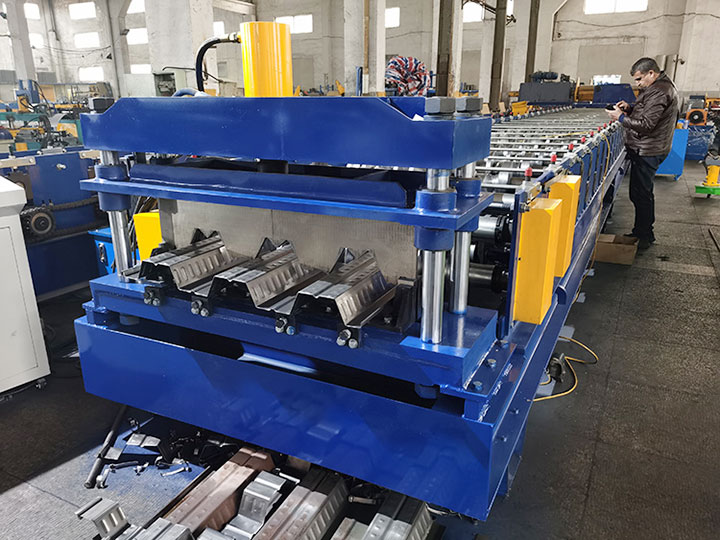

Metal Floor Deck Roll Forming Machine is a steel deck profile cold roll-machine. The Metal Deck Roll Forming Machine adopts PLC control, AC frequency and speed adjusting technology. The Deck Floor Roll Forming Machine realizes continuous production automatically. The cold roll-machine is energy-saving and high-effective to produce equipment for steel structure buildings.
Application

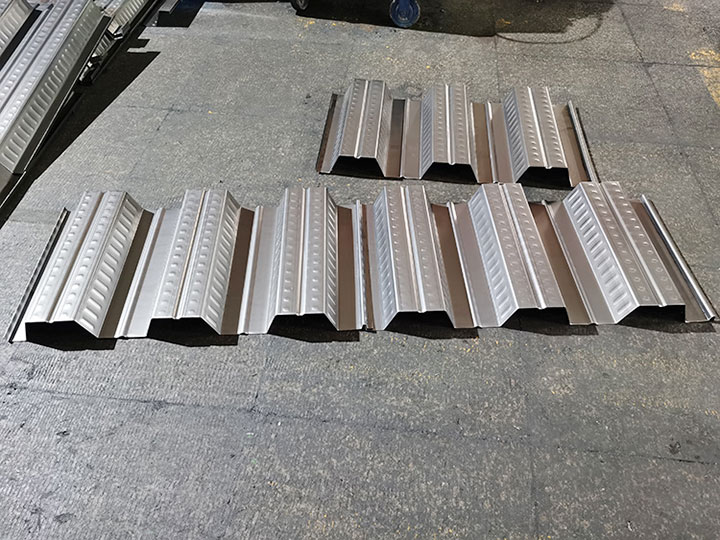

Metal Deck Floor Roll Forming Machine is used to manufacture deck floor for steel-structured buildings in constructional engineering.
deck 2”, deck 3”, deck 1.5”, deck 840, trd-91.5, dove tail, roof deck floor, floor deck, bridge deck, deep deck Roll Forming Machine
Advantages
1.The roller shaft is supported by guiding column.
2. Double-chain transmission
3. Electric motor driven, with dynamos in every section
4. PLC Brand: Mitsubishi & Siemens
5. Producing speed can reach to 8-9m/min
Lead Time & Delivery
60 days to produce after receiving the down payment.
Payment
30% TT for down payment, the rest of the contract value should be paid by TT before shipment.
Parameters
No.
|
Item
|
Para
|
Remark
|
1
|
Suitable Material
|
Type
|
Galvanized/Color Steel Sheet
|
|
Thickness (mm)
|
0.8 to 1.2
|
|
Yield Strength (Mpa)
|
230 to 300
|
|
(mm)
|
≤1500
|
|
Capacity of Decoiler
|
5T/8T/10T
|
According to Customer
|
2
|
Material of Rollers
|
No.45 Steel with Hard Chromeplate
|
|
3
|
Line Speed (m/min)
|
20
|
Cutting Time Excluded
|
4
|
Transmission System
|
Chain
|
|
5
|
Electric Control System
|
PLC
|
Brand: Mitsubishi or Siemens
|
6
|
Operation Desk
|
Touch Screen + Button
|
|
Components
No
|
.Name
|
Quantity
|
Remarks
|
1
|
Decoiler
|
1set
|
Up to Customer
|
2
|
Main Machine
|
Pre-cutting Device
|
1set
|
Up to Customer
|
Feeding Device
|
1set
|
|
Lubricating Device
|
1set
|
Up to Customer
|
Roll Forming System
|
1set
|
|
Movable Safety Guard
|
1set
|
Up to Customer
|
Post Cutting Device
|
1set
|
|
Hydraulic System
|
1set
|
|
3
|
Electric Control System
|
1set
|
|
4
|
Supporter/Automatic Stacker
|
1set
|
Up to Customer |
|
