Description

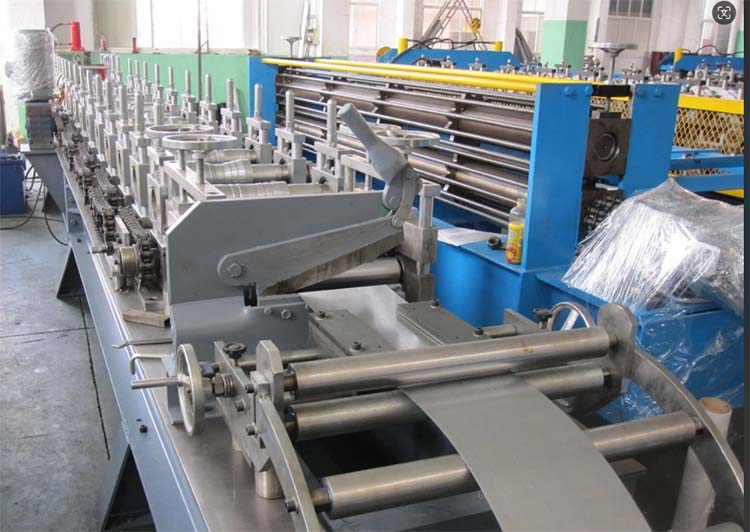

Roof Batten Roll Forming Machine includes hydraulic expansion decoiler, leveling equipment, roll forming system, punching equipment, cutting equipment, hydraulic station, electric controlling system and supporter for purlin. The Roof Batten Roll Forming Machine adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically. The Roof Batten Roll Forming Machine line is energy-saving and high-effective to produce equipment for steel structure.

Application

Many houses use roof batten to support the tile. The roof battens are made into roof beams, and the paving and tiles are placed on the roof truss or diagonal beams of the house. The steel roof batten from purlin machine is lighter in size, which is in line with the characteristics of the roof batten.

Advantages
1.The roller shaft is supported by guiding column.
2. Double-chain transmission
3. Electric motor driven, with dynamos in every section
4. PLC Brand: Mitsubishi & Siemens
5. Producing speed can reach to 8-9m/min

Lead Time & Delivery
60 days to produce after receiving the down payment.
Payment
30% TT for down payment, the rest of the contract value should be paid by TT before shipment.

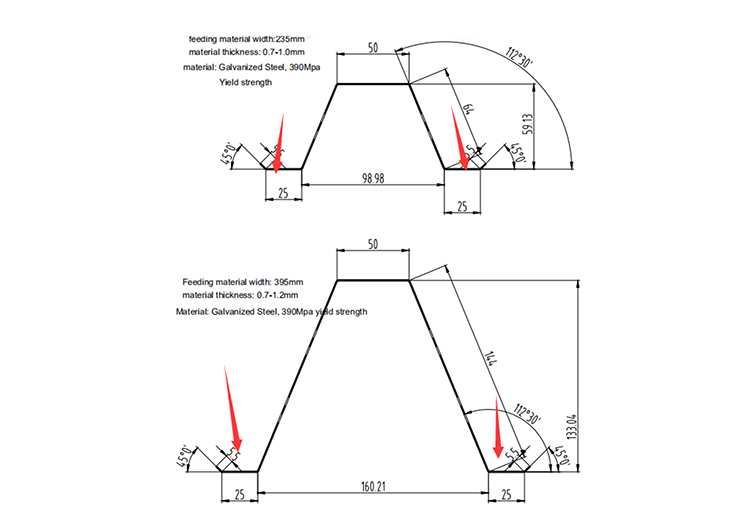

Parameters

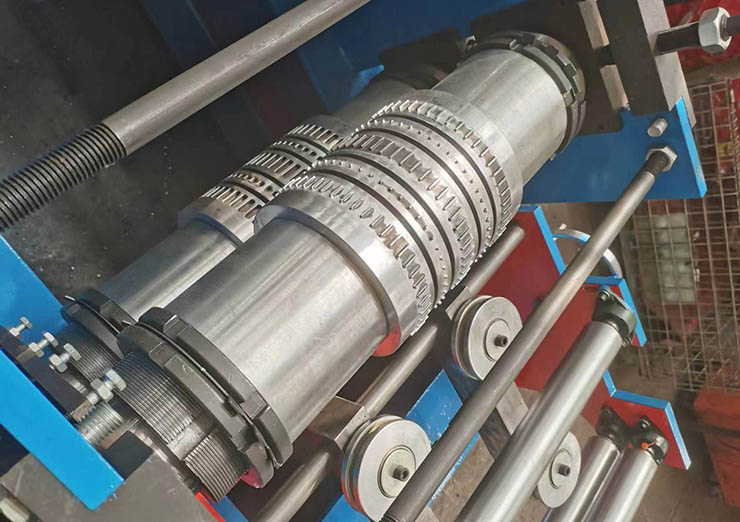

Components
