Description

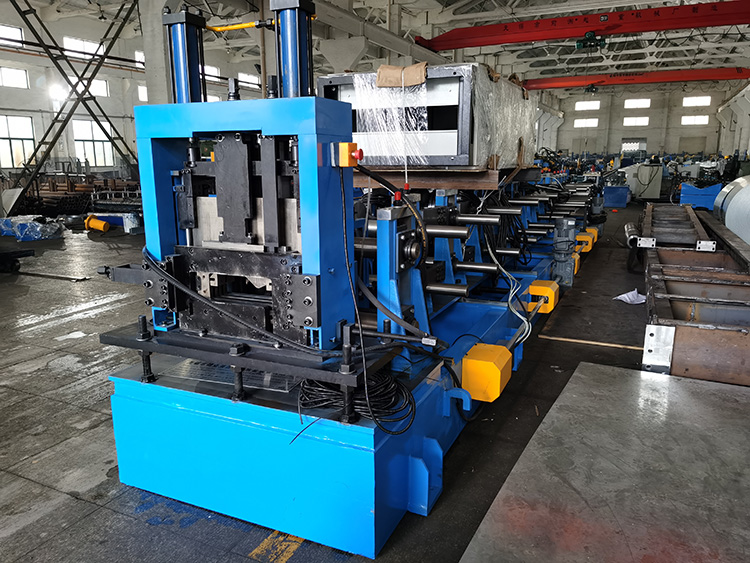

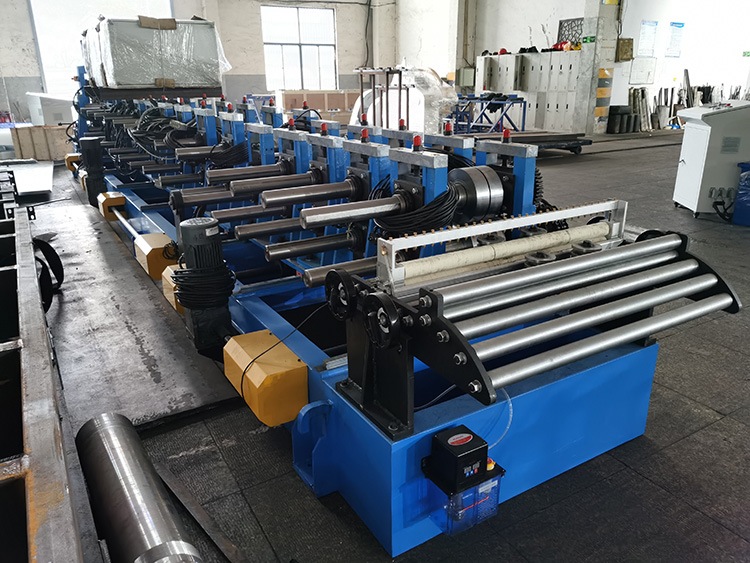

C&Z purlin roll former includes hydraulic expansion decoiler, leveling equipment, roll forming system, punching equipment, cutting equipment, hydraulic station, electric controlling system and supporter for purlin. The C&Z purlin roll former adopts PLC control, AC frequency and speed adjusting technology to realize continuous production automatically. The purlin roll forming line is energy-saving and high-effective to produce equipment for steel structure.
Application

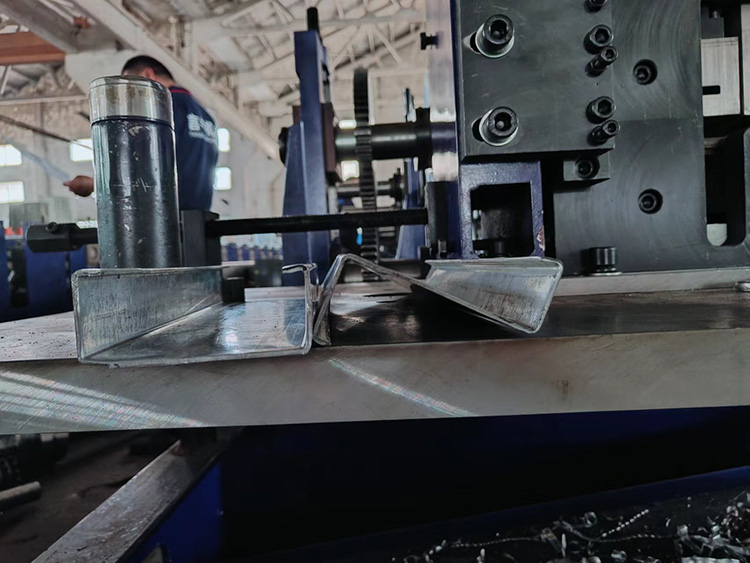

Many houses use purlins to lift the rafters to support the rafters. The purlins are made into roof beams, and the paving and tiles are placed on the roof truss or diagonal beams of the house. The steel purlin from purlin machine is lighter in size, which is in line with the characteristics of the roof purlin.
Advantages
1.The roller shaft is supported by guiding column.
2. Double-chain transmission
3. Electric motor driven, with dynamos in every section
4. PLC Brand: Mitsubishi & Siemens
5. Producing speed can reach to 8-9m/min
Lead Time & Delivery
60 days to produce after receiving the down payment.
Payment
30% TT for down payment, the rest of the contract value should be paid by TT before shipment.
Parameters
No.
|
Item
|
Para
|
Remark
|
1
|
Suitable Material
|
Type
|
Galvanization Steel Sheet
|
|
Thickness (mm)
|
1.6 to 3.0
|
|
Yield Strength (Mpa)
|
230 to 300
|
|
(mm)
|
≤1250
|
|
Capacity of Decoiler
|
5T/8T/10T
|
According to Customer
|
2
|
Material of rollers
|
Bearing Steel with Quench Treatment
|
|
3
|
Line Speed (m/min)
|
10
|
Excluding Punching and Cutting
|
4
|
Roller Shaft Supporting Structure
|
Steel Plate/Guide Column
|
|
5
|
Electric Control System
|
PLC
|
Brand: Mitsubishi or Siemens
|
6
|
Operation Desk
|
Touch Screen + Button
|
|
Components
No
|
Name
|
Quantity
|
Remarks
|
1
|
Decoiler
|
1set
|
Up to Customer
|
2
|
Main Machine
|
Feeding Device
|
1set
|
|
Leveling System
|
1set
|
|
Punching System
|
1set
|
Up to Customer
|
Pre-cutting System
|
1set
|
|
Roll Forming System
|
1set
|
|
Hydraulic System
|
1set
|
|
3
|
Electric Control System
|
1set
|
|
4
|
Supporter/Automatic Stacker
|
1set
|
Up to Customer |
|
